EcoTech LED Panel

Uniform light effect with optic lens.
High lumen efficiency, 125lm/W.
Tri-Colour 3 CCT switch (3000K/4000K/5700K). .

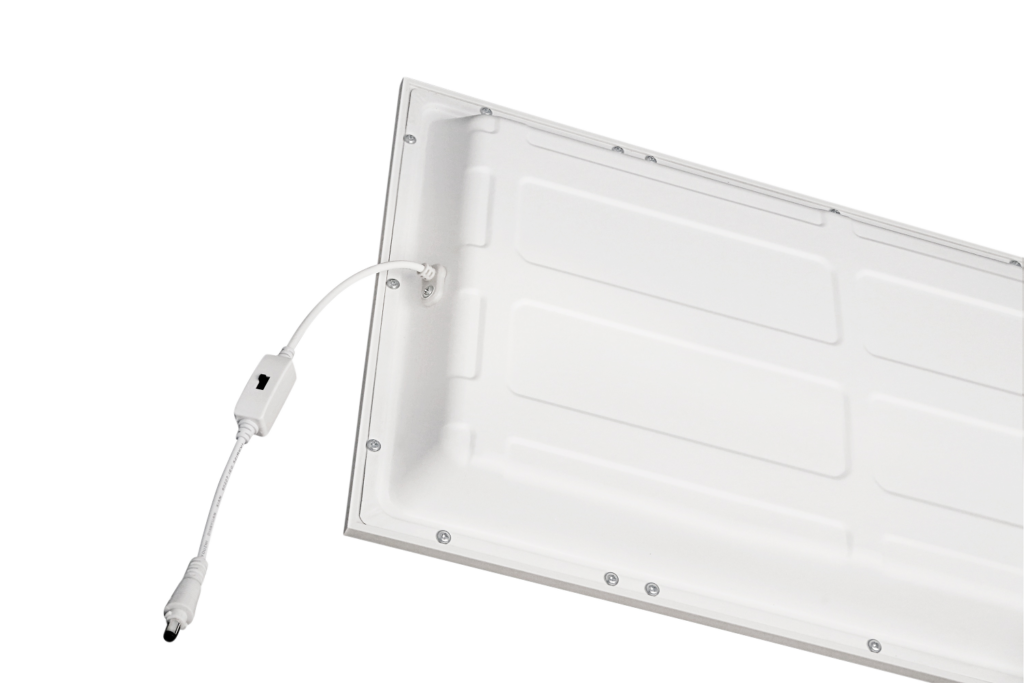

Remote driver.
Installation: Surface mount, Pendant, Recessed.

Beam Angle	120°
Trim Colour	White
Installation Method	Recessed/Surface Mount/Pendant
IP Rating	IP20
Life Time	50.000h
Dimming Type	DALI, Non-Dimmable

Cutout	N/A
Dimensions	295119532mm
Rotate Angle	N/A
Tilt Angle	N/A
MacAdam Steps	3
Voltage	240V

Output (W)	36W
System Efficacy	125lm/watt
System Lumen	4500lm
Color Temperature	3CCT Switch 3000K/4000K/5700K
CRI	80
UGR	19

EcoTech LED Panel

Downloads

Datasheet

Please request .ies files

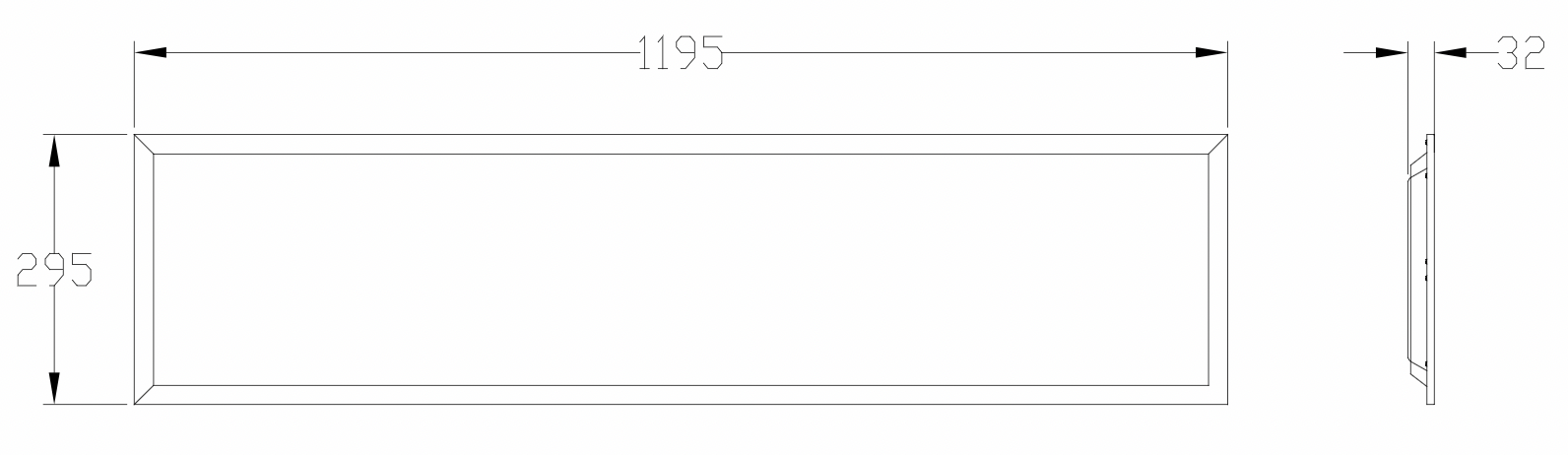

Technical Drawings
