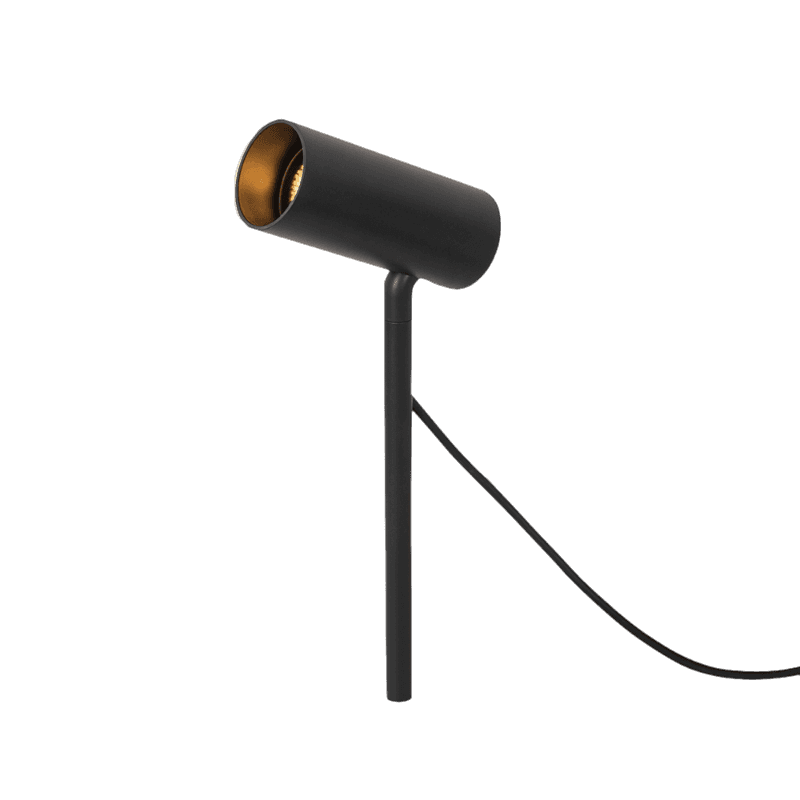

Landscape Garden Spike

24V constant voltage dimming;
0-90° adjustable, 0-25mm module depth adjustable Module design
Modular design with multi step snoot levels

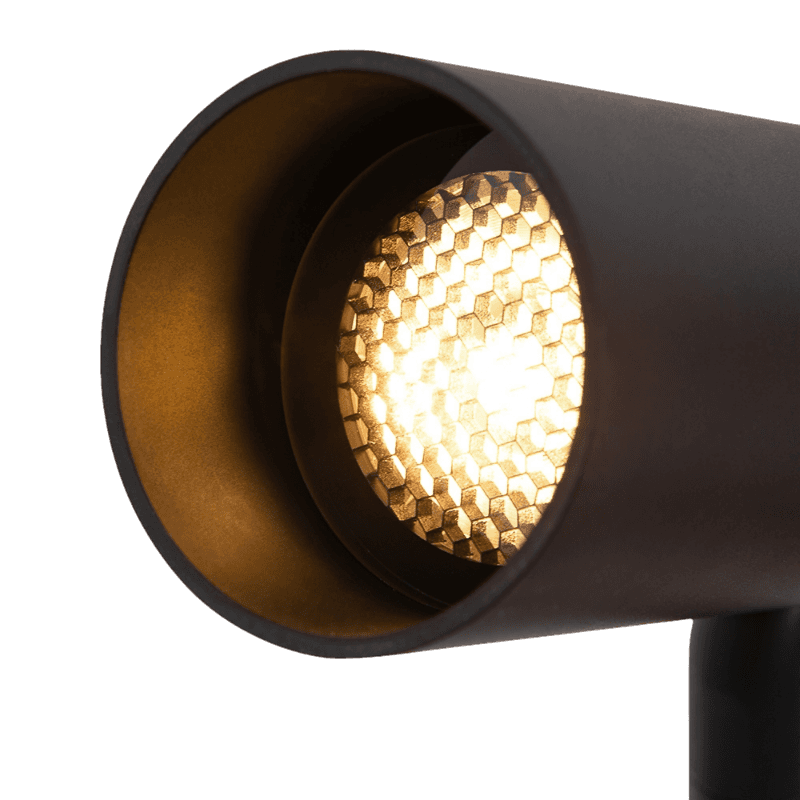

Honeycomb louver available for further glare reduction
Matching outdoor wall light available

Beam Angle	15°, 24°, 36°
Trim Colour	Black/White
Installation Method	External
IP Rating	IP65
Life Time	50.000h
Dimming Type	Non-Dimmable, Phase-Cut Dimmable

Cutout	N/A
Dimensions	Ø57*135mm
Rotate Angle	N/A
Tilt Angle	0°-90°
MacAdam Steps	3
Voltage	DC24V Constant Voltage

Output (W)	8W
System Efficacy	80lm/W
System Lumen	640lm
Color Temperature	2700K/3000K/4000K
CRI	80
UGR	14

Landscape Garden Spike

Downloads

Datasheet

Please request .ies files

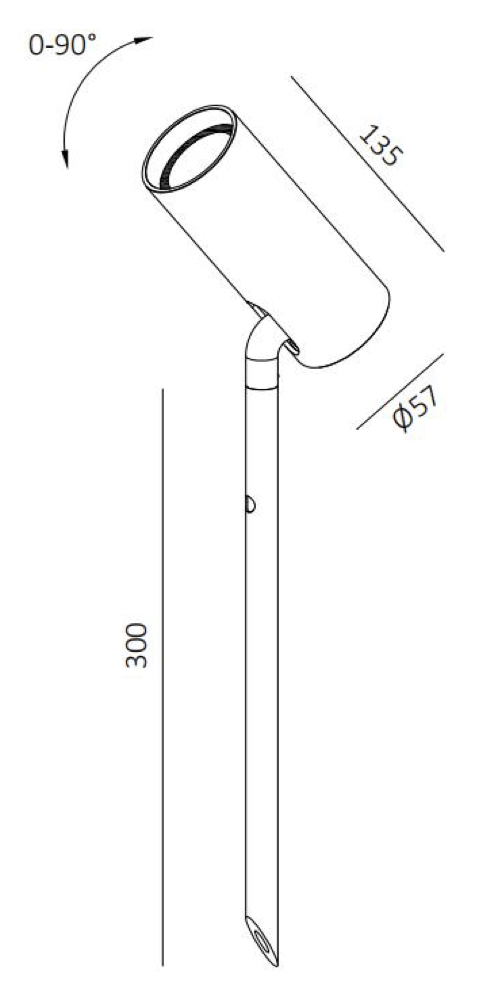

Technical Drawings
