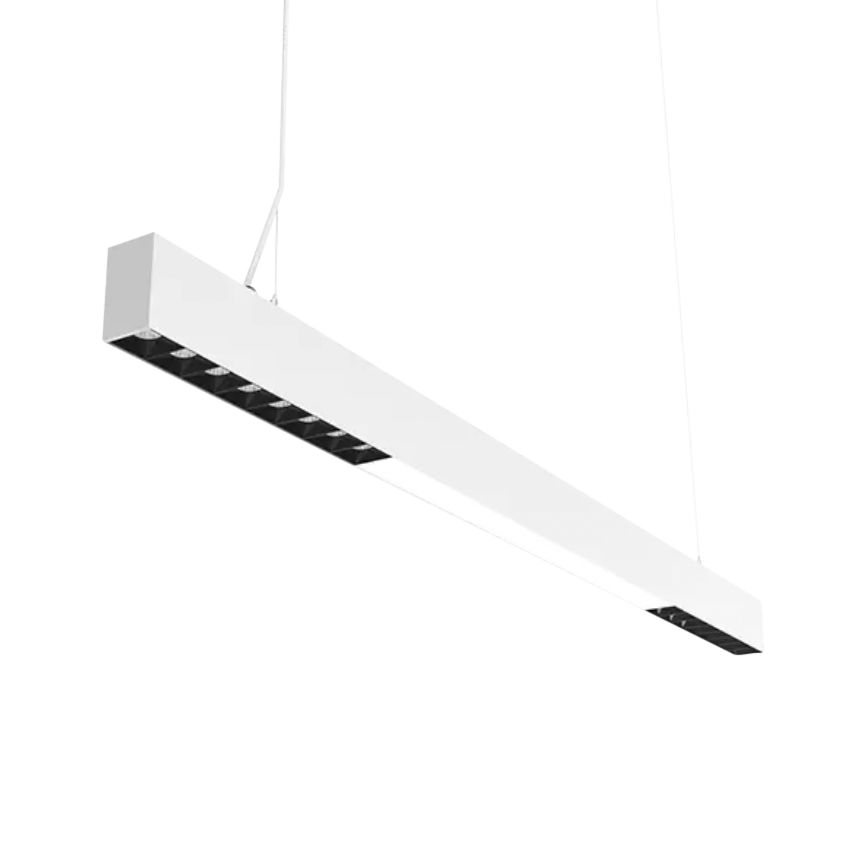

Transform your spaces with the Tek Linear 4680 Microprismatic + Module Reflector. This innovative linear lighting solution offers unparalleled versatility, with push-in, push-out modular optics and seamless linkability. Suitable for retail, hospitality, offices, and educational spaces, choose from direct or direct/indirect lighting options.

SKU: LM-MMR1205025/1506030 Categories: ,
Elevate your commercial spaces with the Tek Linear 4680 Microprismatic + Module Reflector. This linear lighting solution is not just a luminaire; it’s a revolution in customization, adaptability, and performance. Whether it’s retail, hospitality, offices, or educational applications, the Tek Linear Extrusion sets a new standard for commercial lighting.

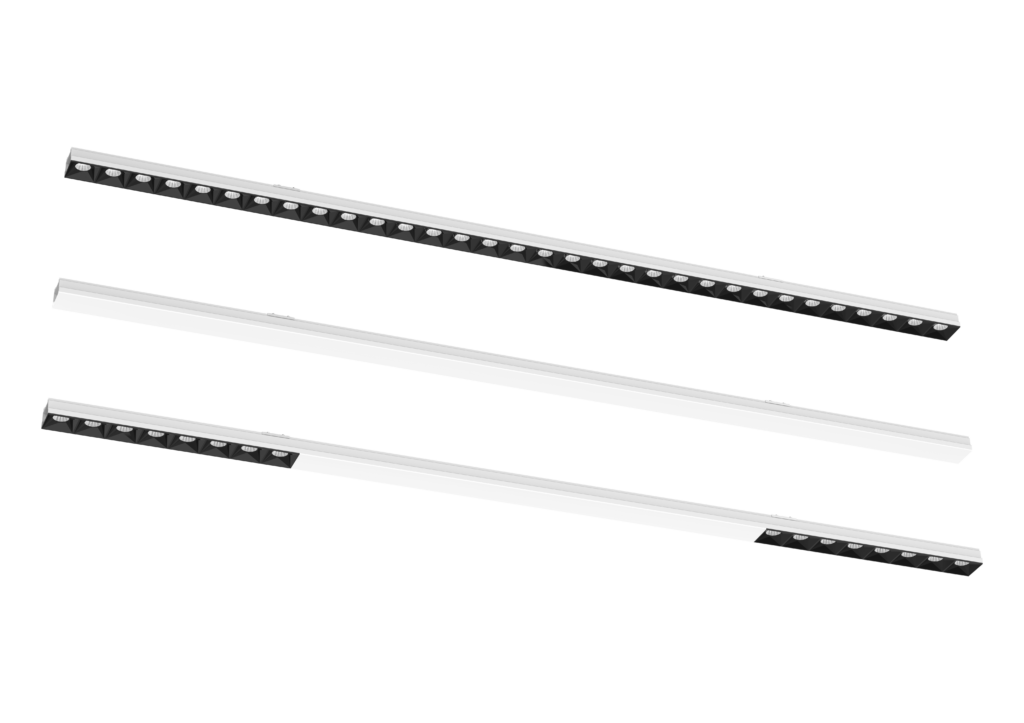

Innovative Modular Optics: The Tek Linear Extrusion takes user-friendliness to the next level with push-in, push-out modular optics. This feature allows for easy customization to any required length, providing you with the flexibility to tailor the lighting to your specific needs. Lumigy believes in putting control in your hands, and the Tek Linear Extrusion does just that.

Seamless Connectivity: Linking multiple Tek Linear Extrusions is effortless, thanks to the patented lockable connector and pre-wired internal trunking system. This unique design ensures a seamless and secure connection, allowing you to create continuous lines of light that enhance the aesthetics of your space. Lumigy understands the importance of seamless design in commercial settings, and the Tek Linear Extrusion delivers just that.

Versatile Installation Methods: The Tek Linear Extrusion adapts to your space’s requirements with its pendant, recessed, or surface mount installation options. Whether you prefer a sleek suspended look, a seamless recessed integration, or a surface-mounted solution, Lumigy provides the flexibility to match your design vision.

Supports Major Lighting Controls: No matter your preferred lighting control system, the Tek Linear Extrusion has you covered. With support for all major lighting control types, including Casambi, you have the freedom to manage and personalize your lighting experience. Lumigy empowers you with control and convenience.

Tailored Lighting Options: Choose from direct or direct/indirect lighting options to suit the ambiance you desire. Lumigy understands that different commercial settings have unique lighting needs, and the Tek Linear Extrusion offers the versatility to meet those diverse requirements.

Performance with Style: With a system efficacy of 140lm/watt and a system lumen output of up to 8400lm, the Tek Linear Extrusion balances performance with energy efficiency. Lumigy prioritizes not just illumination but also sustainability, making this linear lighting solution a wise investment for your commercial spaces.

Illuminate your commercial spaces with brilliance—choose the Tek Linear 4680 Microprismatic + Module Reflector by Lumigy. Redefine commercial lighting standards with a perfect blend of innovation, adaptability, and style.

Additional information

Technical Characterstics
Beam Angle

140°, 80°

Trim Colour

Black/White/Silver

Installation Method

Pendant, Recessed, Surface Mount

IP Rating

IP20

Life Time

50.000h

Dimming Type

Non-Dimmable, Phase-Cut Dimmable

PHYSICAL CHARACTERISTICS
Cutout

N/A

Dimensions

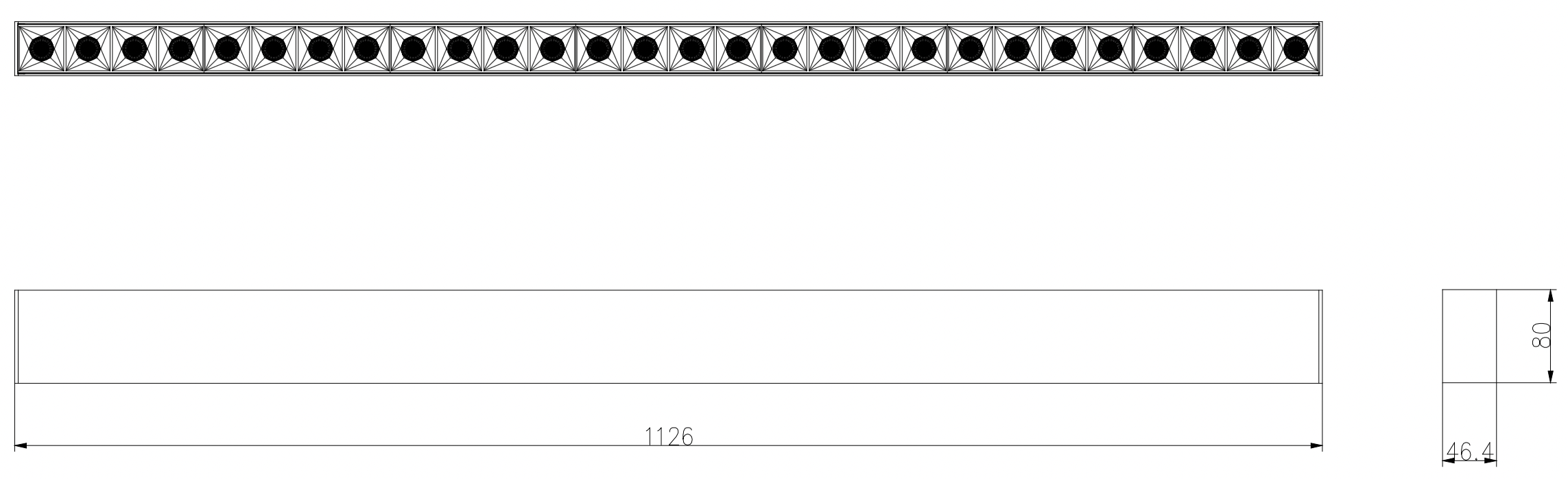

46.4*80*1126mm /46.4*80*1446mm

Rotate Angle

N/A

Tilt Angle

N/A

MacAdam Steps

3

Voltage

240V

Group3
Output (W)

1.2m 50W (25W⬆+25W⬇)

System Efficacy

140lm/watt

System Lumen

1.2m 7000lm (3500lm⬆+3500lm⬇) 1.5m 8400lm (4200lm⬆+4200lm⬇)

Color Temperature

3000K/4000K

CRI

90

UGR

14
