Discover the Acclaim Pinhole Downlight, a sleek and versatile ceiling recessed lighting solution designed for accent lighting, hallways and highlighting of feature walls. With adjustable beam angles, trim colours, and dimming options, it’s perfect for any application.

SKU: LMDL3001 Categories: ,

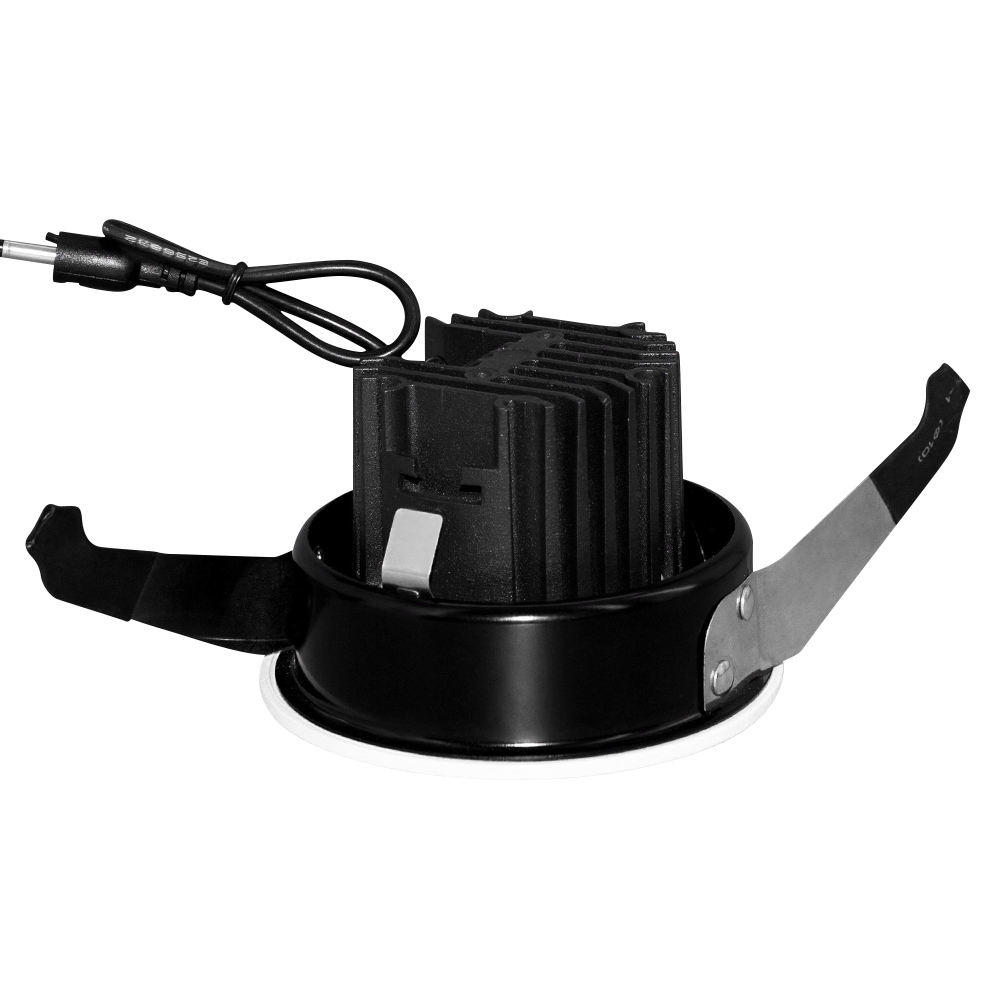

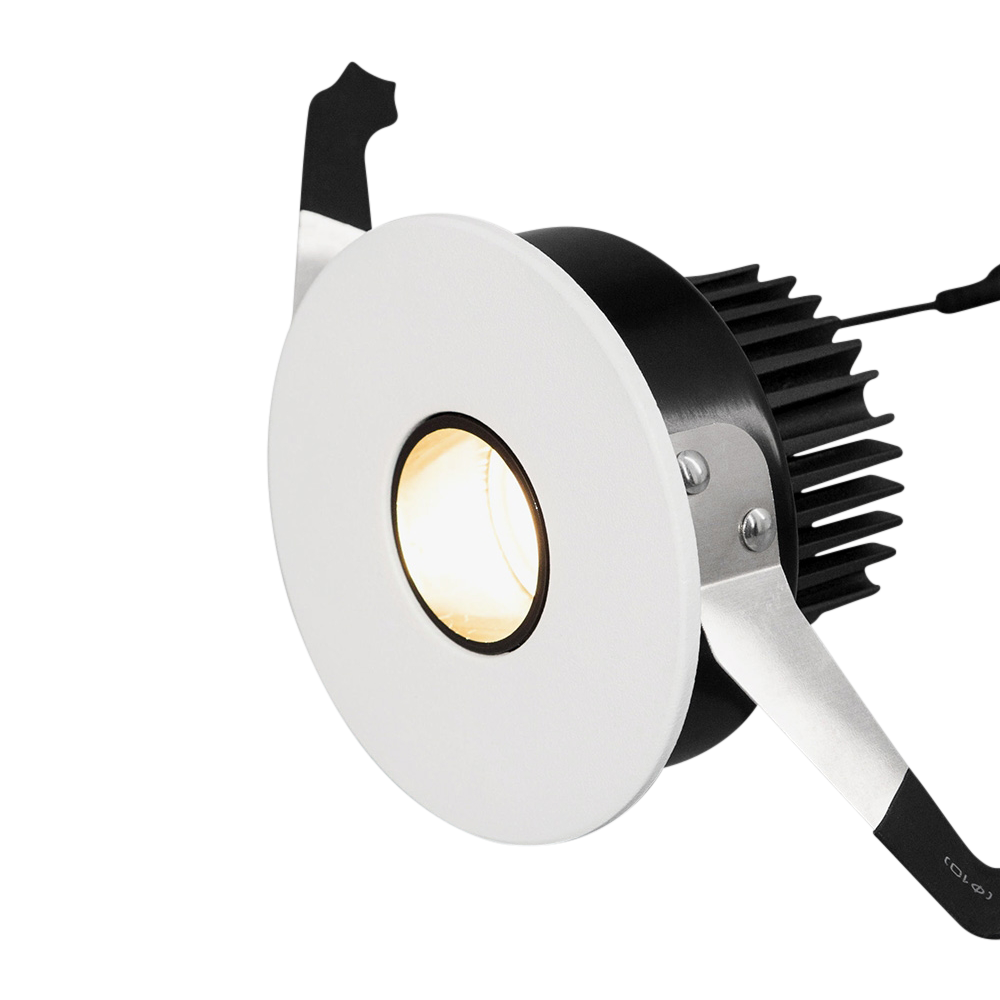

Introducing the Acclaim Pinhole Downlight, a lighting fixture that seamlessly blends precision and style to create the perfect illumination in any environment. With a modern design and a wide range of customizable features, this ceiling recessed downlight is designed to enhance your space while providing exceptional lighting performance.

Beam Angle: The Acclaim Pinhole Downlight offers three beam angle options – 15°, 24°, and 36°, giving you the freedom to choose between a focused, medium, or wide illumination pattern. Whether you need to accentuate specific areas or create an ambient atmosphere, this downlight has you covered.

Trim Colour: Available in both black and white trim colors, this downlight effortlessly integrates into your decor, allowing you to match your style or create a striking contrast.

Installation Method: Designed for ceiling recessed installation, the Acclaim Pinhole Downlight fits seamlessly into your ceiling, providing a sleek and unobtrusive lighting solution.

IP Rating: With an IP54 rating, this downlight is built to withstand dust and splashes of water, making it suitable for a wide range of applications, including kitchens, bathrooms, and outdoor overhangs.

Life Time: Say goodbye to frequent replacements. The Acclaim Pinhole Downlight boasts an impressive lifetime of 50,000 hours, ensuring years of reliable and efficient operation.

Dimming Type: Create the perfect ambiance for any occasion with a range of dimming options, including non-dimmable, phase-cut dimmable, DALI, and Dim to Warm. Control the light intensity to suit your needs, from bright and vibrant to soft and cozy.

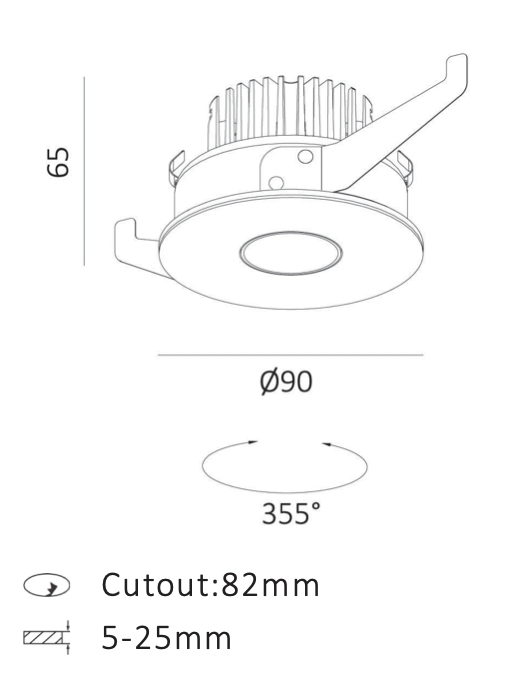

Cutout Size: The downlight has a cutout size of Ø82mm, making it easy to install in standard ceiling openings.

Dimensions: With a diameter of Ø90mm and a height of 65mm, the Acclaim Pinhole Downlight boasts a compact and unobtrusive design, seamlessly integrating into your ceiling without overwhelming your space.

Rotate Angle: Enjoy complete control over the lighting direction with a 355° rotation angle. Direct the light precisely where you want it, whether you’re highlighting artwork or architectural features.

Tilt Angle: The fixed tilt angle ensures that the light is directed downwards for optimal illumination without glare, creating a comfortable and well-lit space.

MacAdam Steps: The Acclaim Pinhole Downlight offers MacAdam steps of 3, guaranteeing consistent and accurate colour quality in your lighting.

Voltage: Operating at 240V, this downlight is energy-efficient and compatible with most electrical systems.

Output (W) and System Efficacy: Despite its compact design, this downlight delivers 10W of power with a system efficacy of 70lm/W. This means you receive 700lm of bright and energy-efficient illumination.

Color Temperature: Choose from three different color temperatures (2700K, 3000K, and 4000K) to create the perfect mood and ambiance for your space, from warm and inviting to cool and energetic.

CRI (Color Rendering Index): The Acclaim Pinhole Downlight is available with three CRI options – 80, 90, and 97. This allows you to select the best option for your needs, whether it’s for general lighting or areas where color accuracy is paramount.

UGR (Unified Glare Rating): With a UGR of less than 19, this downlight minimizes glare, making it comfortable for extended use in offices, homes, and commercial spaces.

The Acclaim Pinhole Downlight is the ideal blend of functionality and style, offering precise lighting, energy efficiency, and adaptability. Enhance your space with this versatile ceiling recessed lighting solution and experience the benefits of long-lasting, high-quality illumination. Illuminate your world with the Acclaim Pinhole Recessed Downlight today!

Additional information

Technical Characterstics
Beam Angle

15°, 24°, 36°

Trim Colour


Installation Method

Ceiling recessed

IP Rating


Life Time


Dimming Type

DALI Dimmable, Dim to Warm, Non-Dimmable, Phase-Cut Dimmable





Rotate Angle


Tilt Angle


MacAdam Steps




Output (W)


System Efficacy


System Lumen


Color Temperature
